TortoiseGraphics2

A turtle graphics engine — a key feature of the Logo programming language — written in Swift.

Version 2 of TortoiseGraphics, rewritten for Swift 6 strict concurrency and SwiftUI.

let 🐢 = Tortoise()
🐢.penColor = .orange
🐢.penWidth = 2
for _ in 1...36 {
    🐢.forward(200)
    🐢.right(170)
}

Gallery

Each drawing is a single-file example with a SwiftUI #Preview — open this package in Xcode and pick a file under Sources/Examples/Gallery/ to watch it draw itself. swift run ExamplesRunner regenerates the images below.


Square Spiral	Fractal Tree	Koch Snowflake

Circle Rosette	Filled Star	Waves

Showcase

Apps built with TortoiseGraphics2:

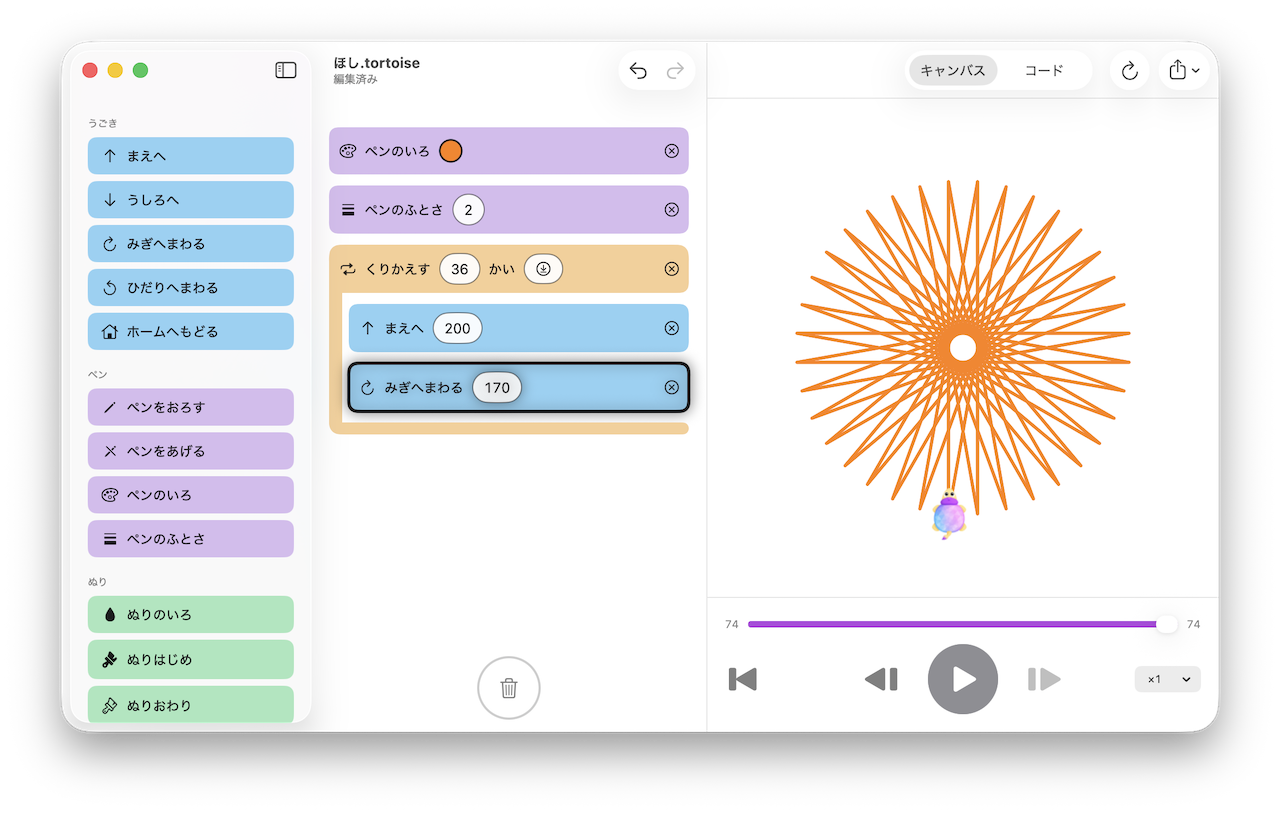

TortoiseBlocks

A visual programming app for kids — snap blocks together, press Run, and watch the tortoise draw. Blocks expand into a Tortoise command stream played by TortoiseCanvas with a TortoisePlayer (pause, single-step, seek, and speed control, with the executing block highlighted), a code pane shows the equivalent Swift program, and drawings export as SVG straight from the library.

Modules

Module	Description
TortoiseCore	Tortoise API + command stream (`Codable`). Foundation-only; no platform dependencies.
TortoiseUI	SwiftUI animated canvas view (`TimelineView` + `Canvas`).
TortoiseSVG	Tortoise → static SVG string. No platform dependencies.

The design follows an event-sourcing pattern: Tortoise accumulates [TortoiseCommand]; rendering is handled by separate, pure-function consumers that replay the same stream. This makes SVG export, animation, and testing all share a single source of truth.

Requirements

Swift 6.2+
Xcode 26+ (Apple platforms)
Platforms iOS 26+ · macOS 26+ · visionOS 26+ · Linux (TortoiseCore / TortoiseSVG only — TortoiseUI requires SwiftUI)

Installation

Add the package in Xcode via File › Add Package Dependencies, or add it to your Package.swift:

platforms: [
    .iOS(.v26), .macOS(.v26), .visionOS(.v26),
],
dependencies: [
    .package(url: "https://github.com/temoki/TortoiseGraphics2", from: "2.0.0-beta1"),
],
targets: [
    .target(
        name: "YourTarget",
        dependencies: [
            .product(name: "TortoiseCore", package: "TortoiseGraphics2"),
            .product(name: "TortoiseUI",   package: "TortoiseGraphics2"),
            .product(name: "TortoiseSVG",  package: "TortoiseGraphics2"),
        ]
    ),
]

Note While 2.0.0 is in beta, the version requirement needs a prerelease lower bound — a plain from: "2.0.0" does not match prerelease tags. from: "2.0.0-beta1" resolves to the newest beta, and picks up the stable 2.0.0 release automatically once it ships.

Import only what you need — TortoiseCore alone is sufficient if you're writing your own renderer. TortoiseUI and TortoiseSVG re-export TortoiseCore, so importing either one already gives you Tortoise and the rest of the core types.

Usage

Animated SwiftUI view

import TortoiseUI

struct ContentView: View {
    var body: some View {
        TortoiseCanvas { 🐢 in
            🐢.speed = 5
            🐢.penColor = .blue
            for _ in 1...4 {
                🐢.forward(100)
                🐢.right(90)
            }
        }
    }
}

speed ranges from 1 (slowest) to 10 (fastest). Set it to 0 for instant rendering — useful for static previews.

Playback control

Pass a TortoisePlayer to pause, resume, single-step, seek, and override the playback speed from your own UI. currentCommandIndex and isFinished are observable — bind a "currently executing command" highlight directly:

@State private var player = TortoisePlayer()

var body: some View {
    TortoiseCanvas(🐢, player: player)
    Toggle("Pause", systemImage: "pause.fill", isOn: $player.isPaused)
    Button("Step", systemImage: "forward.frame.fill") { player.step() }
}

player.speedOverride is the viewer's speed control (like a video player's speed button): while non-nil it takes precedence over the stream's speed, and changing it never rewinds playback. Set it back to nil to follow the program's own speed again.

SVG export

import TortoiseSVG

let 🐢 = Tortoise()
🐢.penColor = .blue
for _ in 1...4 {
    🐢.forward(100)
    🐢.right(90)
}

let svg = TortoiseSVG.render(🐢)
// or:
let svg = 🐢.svg()

// Write to a file using Swift's built-in String method
try svg.write(to: URL(filePath: "square.svg"), atomically: true, encoding: .utf8)

By default the viewBox is cropped to the drawing's bounding box. Pass fit: false (🐢.svg(fit: false)) to keep the full logical canvasSize as the viewBox instead.

Command serialization

TortoiseCommand, Color, Point, and Size conform to Codable, so a recorded drawing can be saved as JSON and replayed later by any renderer:

let data = try JSONEncoder().encode(🐢.commands)

let commands = try JSONDecoder().decode([TortoiseCommand].self, from: data)
let frames = CommandPlayer.play(commands: commands)

The coding keys are hand-written and frozen for the 2.x series, so the format is safe for app documents and golden files — see the Command Serialization article for the wire format and its stability guarantee.

Tortoise API quick reference

Movement

Method / Property	Description
`forward(_ distance: Double)`	Move forward by `distance` pixels
`backward(_ distance: Double)`	Move backward by `distance` pixels
`right(_ degrees: Double)`	Rotate clockwise
`left(_ degrees: Double)`	Rotate counterclockwise
`home()`	Teleport to origin and reset heading to north
`setPosition(x:y:)` / `setPosition(_:)`	Teleport to a position (pen draws if down)
`setX(_ x: Double)`	Teleport to `(x, y)` keeping current Y
`setY(_ y: Double)`	Teleport to `(x, y)` keeping current X
`circle(radius:extent:)`	Draw a circular arc (default `extent`: 360°)
`dot(size:)`	Draw a filled circle at the current position

Pen

Method / Property	Description
`penDown()`	Lower pen — movements draw lines
`penUp()`	Lift pen — movements don't draw
`isPenDown: Bool`	Whether the pen is currently down (read-only)
`penColor: Color`	Stroke color
`penWidth: Double`	Stroke width in logical units

Fill

Method / Property	Description
`beginFill()`	Start collecting fill polygon vertices
`endFill()`	Close and draw the fill polygon
`fillColor: Color`	Fill color
`isFilling: Bool`	Whether a fill region is currently active (read-only)

Query

Method / Property	Description
`position: Point`	Current position in tortoise coordinates (read-only)
`heading: Double`	Current heading in degrees (0 = north, CW+); settable
`towards(x:y:)` / `towards(_:)`	Heading toward a point from current position
`distance(x:y:)` / `distance(_:)`	Distance to a point from current position

Appearance

Method / Property	Description
`showTortoise()`	Make the tortoise visible
`hideTortoise()`	Hide the tortoise
`isVisible: Bool`	Whether the tortoise is visible (read-only)

Canvas

Method / Property	Description
`backgroundColor: Color`	Canvas background color. Defaults to white; set `.clear` for a transparent canvas (then SwiftUI's `.background()` or the host page shows through)
`clear()`	Erase all drawings (tortoise state is preserved)
`reset()`	Discard all commands and restore the initial state (`canvasSize` is kept)
`speed: Double`	Animation speed: 1 (slowest) … 10 (fastest), 0 = instant
`canvasSize: Size`	Logical canvas dimensions

Viewport (TortoiseCanvas)

Use the .tortoiseViewport(_:) modifier to control how the drawing maps onto the view:

TortoiseCanvas(🐢)
    .tortoiseViewport(.original)

`ViewportMode`	Description
`.scaleToFit`	Scale logical canvas to fill the view, letterboxed.
`.original`	1 tortoise unit = 1 point, origin at view center
`.autoFit`	Scale and center to fit the actual drawing bounding box. Default.

With .autoFit, use SwiftUI's .padding() to add space around the drawing.

Tortoise sprite (TortoiseCanvas)

By default the tortoise is drawn as a green triangle. Use the .tortoiseSprite(_:) modifier to draw your own image instead:

TortoiseCanvas(🐢)
    .tortoiseSprite(.image(Image("Turtle"), size: CGSize(width: 40, height: 40)))

The image is centered on the tortoise's position and rotated so its top edge faces the heading — so supply artwork that points up. Transparency is preserved, and size acts as a bounding box: the image is scaled to fit inside it without distorting its aspect ratio, then scales with the viewport just like the built-in triangle (clamped to 0.5×–2×). Use Image(uiImage:) / Image(nsImage:) for an image you already have in memory.

Architecture

Tortoise API calls
      │  produces
      ▼
[TortoiseCommand]  ── pure value stream ──▶  TortoiseUI  (SwiftUI animation)
  (Sendable)                           ──▶  TortoiseSVG (static SVG export)
                                       ──▶  your own renderer

CommandPlayer.play(commands:) converts [TortoiseCommand] into [PlaybackFrame] — a snapshot of tortoise state after each command. Both TortoiseUI and TortoiseSVG build on top of this pure function.

Credits

Special thanks to @kiyoshifuwa, for the amazing art works.

License

MIT. See LICENSE.
